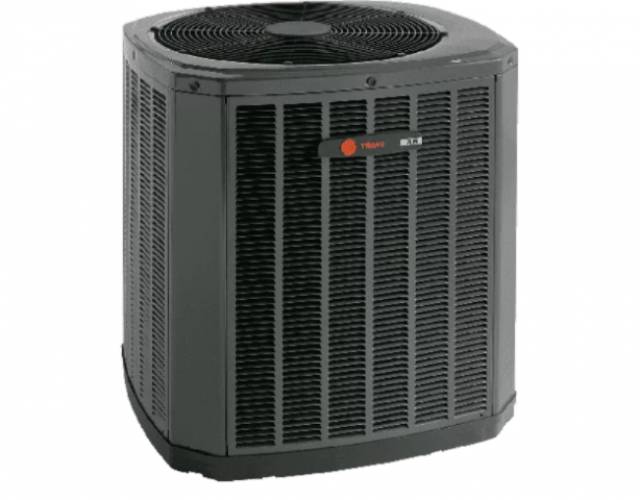

Trane 2 Ton 14.5 SEER XR14 23600 BTU AC Condenser 4TTR4024L1000B

Trane XR14 Series 2 Ton 23600 BTU 4TTR4024L1000B unit is a 14.5 SEER outdoor Air Conditioner Condenser that is a reliable and efficient air conditioning system. Its increased energy efficiency will help lower the HVAC costs of your home.

The Climatuff Scroll Compressor of this unit ensures quiet operation all day long while its Spine Fin Coil enhances the efficiency of this system.

For corrosion resistance, the condenser unit is equipped with Weatherguard fasteners along with a DuraTuff base pan that ensures corrosion or rust doesn’t cause the AC any trouble. At the same time, the full-slide louvered panels of this 2 ton 14.5 SEER XR14 Series 4TTR4024L1000B unit keep the internal components safe inside.

Features of Trane 2 Ton 14.5 SEER XR14 AC Condenser
1) Quick-Sess Cabinet with Full Coil Protection

2) Spine Fin coil

3) Climatuff Scroll Compressor for quiet operation and cost-efficiency

4) Premium Grey Finish

5) The materials used for the construction are premium in quality and thus they last much longer

6) Full-Side Louvered Panels

7) DuraTuff Non-Corrosive Base Pan

8) Corrosion-Resistant Weatherguard Fasteners

Specifications of Trane 2 Ton 14.5 SEER XR14 Series 23600 BTU Outdoor Air Conditioner Condenser 4TTR4024L1000B
Condenser Specifications
Nominal Capacity 2 Ton
Cooling Capacity 23600 BTU
Compressor CLIMATUFF®- SCROLL
Stages Single
Fan HP 1/8
Fan Diameter 18.2 Inches
R-410a Refrigerant 4 Pounds
Coil SPINE FIN™
Chassis Type Fixed
Condenser Electrical Data
Voltage 230/208 Volts
Phase 1
Frequency 60 Hz
Minimum Circuity Ampacity 14 A
Breaker Circuit Prot. Rtg. (Maximum) 20 A
RL Amps 10.1 A
LR Amps 52 A
Outdoor Fan FL Amps 0.9 A
AC Condenser Dimensions
Line Size – IN. O.D. Gas 3/4 Inches
Line Size – IN. O.D. Liquid 3/8 Inches
Condenser Height 29 Inches
Condenser Width 29 Inches
Condenser Depth 26 Inches
AC Condenser Weight
Condenser Weight 133 Pounds
Shipping Weight 153 Pounds
