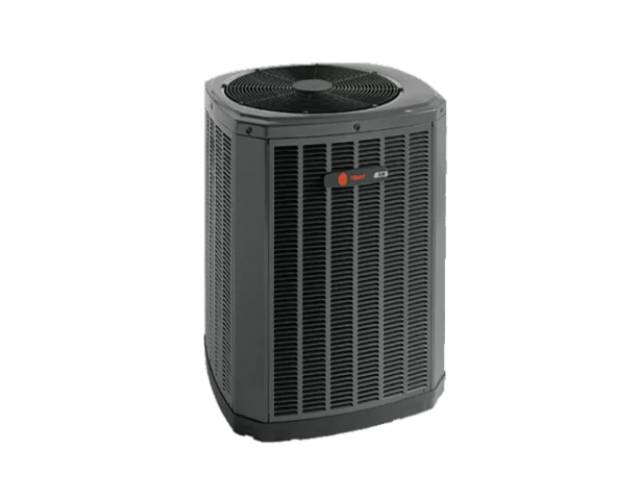

Trane 2.5 Ton 14 SEER XR14 29000 BTU Single Stage Heat Pump 4TWR4030G1000A

Trane XR14 Series 2.5 Ton 29000 BTU 4TWR4030G1000A unit is a 14 SEER outdoor split system single stage heat pump that is efficient and reliable heating and cooling system suitable for any home and commercial space HVAC needs. The increased energy efficiency of this 2.5 Ton will help cut the HVAC costs. Besides, the base of this single stage 2.5 Ton 14 SEER heat pump is made of a CMBP-G30 weatherproof material for corrosion resistance.

That being said, the full-slide louvered panels of this 2.5 Ton 14 SEER XR14 Series 4TWR4030G1000A Single Stage Heat Pump unit keep the internal parts safely protected inside.

Features of Trane 2.5 Ton 14 SEER 29000 BTU XR14 Split System Single Stage Heat Pump 4TWR4030G1000A
Multi-Port In-Shot Burners
DuraTuff Non-Corrosive Base Pan
Spine Fin Coil
Climatuff Scroll Compressor for quiet operation and cost-efficiency
Full-Side Louvered Panels
Formed Steel Door with the Smoked Acrylic View Windows that offer an attractive look
Aluminized Steel Heat Exchanger for efficient heat exchange & corrosion-resistance Quick-Sess Cabinet with Full Coil Protection
Corrosion-Resistant Weatherguard Fasteners
Heavy Steel Insulated Cabinet for longevity
Silicon Nitride Hot Surface Igniter ensures reliable ignition system
The materials used for the construction are premium in quality and thus they last much longer
High and low pressure switches
Patented Vortica® II Blower that works quietly while also making the heating system efficient
The high efficiency EC Motor or Electronically Commutated Motor keeps the heating unit cost-efficient for years
Specifications of Trane 2.5 Ton 14 SEER XR14 Series 29000 BTU Split System Single Stage Heat Pump 4TWR4030G1000A
Heat Pump Specifications
Nominal Capacity 2.5 Ton
Cooling Capacity 29000 BTU
Compressor CLIMATUFF®- SCROLL
Stages Single Stage
Fan HP 1/8 HP
Fan Diameter 27.5 Inch
R-410a Refrigerant 6 Pounds
Coil SPINE FIN™
Chassis Type Fixed
Heat Pump Electrical Data
Voltage 230/208 V
Phase 1
Frequency 60 Hz
Minimum Circuity Ampacity 17 A
Breaker Circuit Prot. Rtg. (Maximum) 25 A
RL Amps 12.8 A
LR Amps 67.8 A
Outdoor Fan FL Amps 0.77 A
Heat Pump Dimensions
Line Size – IN. O.D. Gas 3/4 Inch
Line Size – IN. O.D. Liquid 3/8 Inch
Heat Pump Height (Crated) 34.4 Inch
Heat Pump Width (Crated) 35.1 Inch
Heat Pump Depth (Crated) 38.7 Inch
Heat Pump Weight
Heat Pump Weight 216 Pound
Shipping Weight 248 Pound
