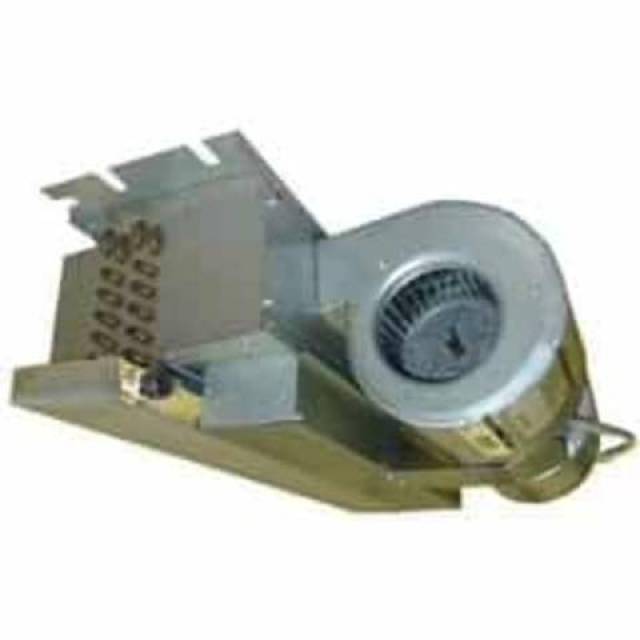

First Company 3 Ton 10 kW Horizontal Fan Coil (Uncased Air Handler) 36HX10 Overview – First Company’s fan coils, especially the HX series ones have a compact dimension. It has a height of 10-inch, width of 49.25-inch and length of 21-inch. Thanks to its compact size, this 3 Ton 10 kW unit saves a lot of valuable space in your home. Besides, it can be easily installed or mounted on your wall.
With 10.5 to 12.2 EER rating and 36000 BTU cooling capacity, this 3 Ton unit is as powerful as its premium counterparts. Besides, this fan coil (uncased air handler) has a number of other useful features.
Features of First Company 3 Ton 10 kW Horizontal Fan Coil (Uncased Air Handler) 36HX10 Drain pan with 3/4-inch NPT primary & secondary (overflow) fitting Enclosure kit for wall mounting/installation Highly efficient Aluminium fin/copper tube cooling coils 240 Volt motor & 24 Volt controls Attractive off-white return air/access panels w/ captive screws Coated, Sloped & Insulated galvanized steel drain pan offering proper drainage system IAQ filter panel Field-installed Heat pump kit Fully insulated enclosure offering matching ceiling panels Allow ducted return air. Field-installed Condensate overflow switches Field or Factory installed R410 TXV
Specifications of First Co. 3 Ton 10 kW 36HX10 Fan Coil (Uncased Air Handler) Brand First Company Tonnage 3 Ton(s) Electric Heat Range 10 kW Voltage 208-240 VAC Amps 44.5 A Phase Single EER 10.5, 11, 12.2 Cooling Capacity 36000 Equipment Type Straight Cool Tier HX Series Product Family HX Refrigerant R-410a Air Flow Horizontal CFM 1200 Cubic Measurement 5.9852 Height 10 Inches Width 49.25 Inches Length 21 Inches Weight 63 lbs. Dimensional Weight 134 lbs. Liquid Line Size (OD) 3/8 Inches Suction Line Size (OD) 7/8 Inches Package Height 11.88 Inches Package Length 23.435 Inches Package Width 67.4725 Inches Package Weight 85 lbs. UOM EA ETL Listed Yes Energy Star Rated No UL Listed No
